Description
The power step automatically deploys as the door opens and closes, emerging and retracting even on extreme slopes. The power step is fully enclosed and features a weatherproof, non-skid surface, and can be fully submerged in water. The power step is designed to fit under all doors and is available in a range of sizes. The polyurethane power step has a capacity to withstand up to 1100lbs of weight. The power step operates in an extreme range of temperatures from -22 degrees to 176 degrees Fahrenheit. Our steps incorporate an electronic circuit protection, electronic limit protection, and overload protection.
AutoCool Telescopic Power Step

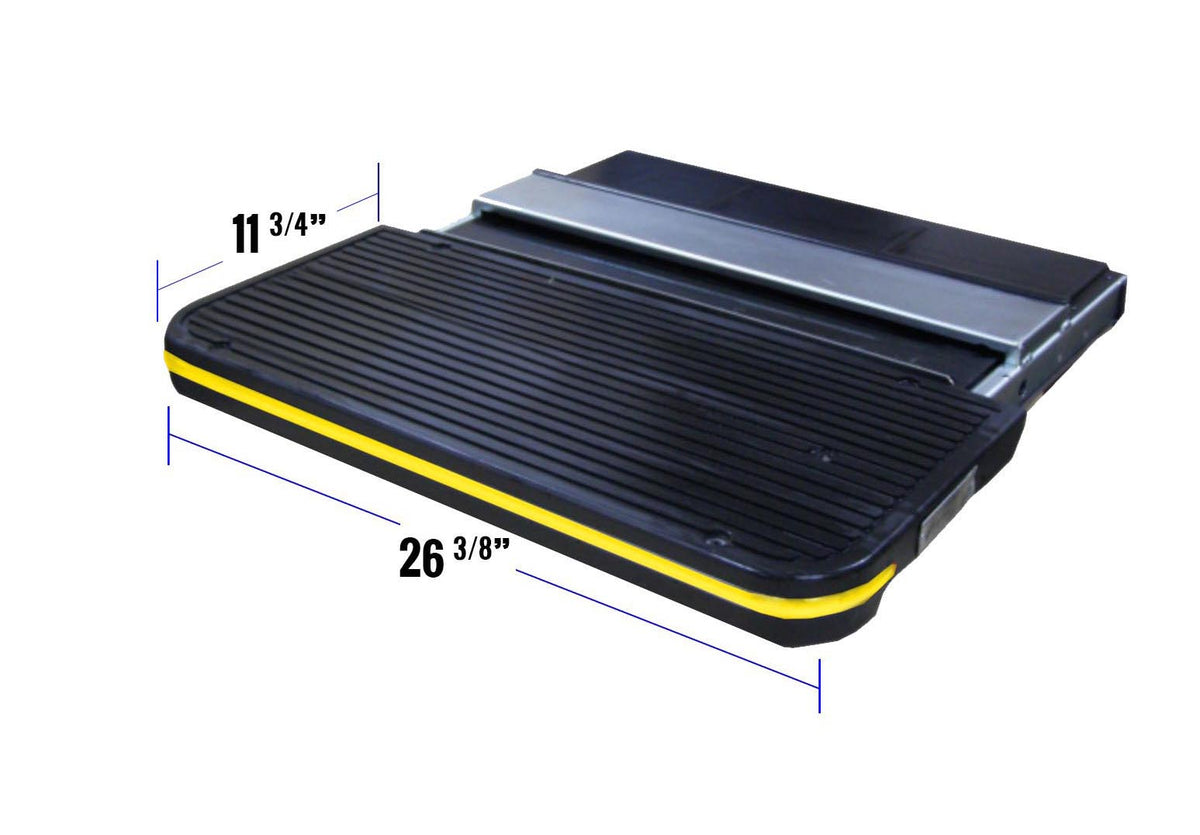

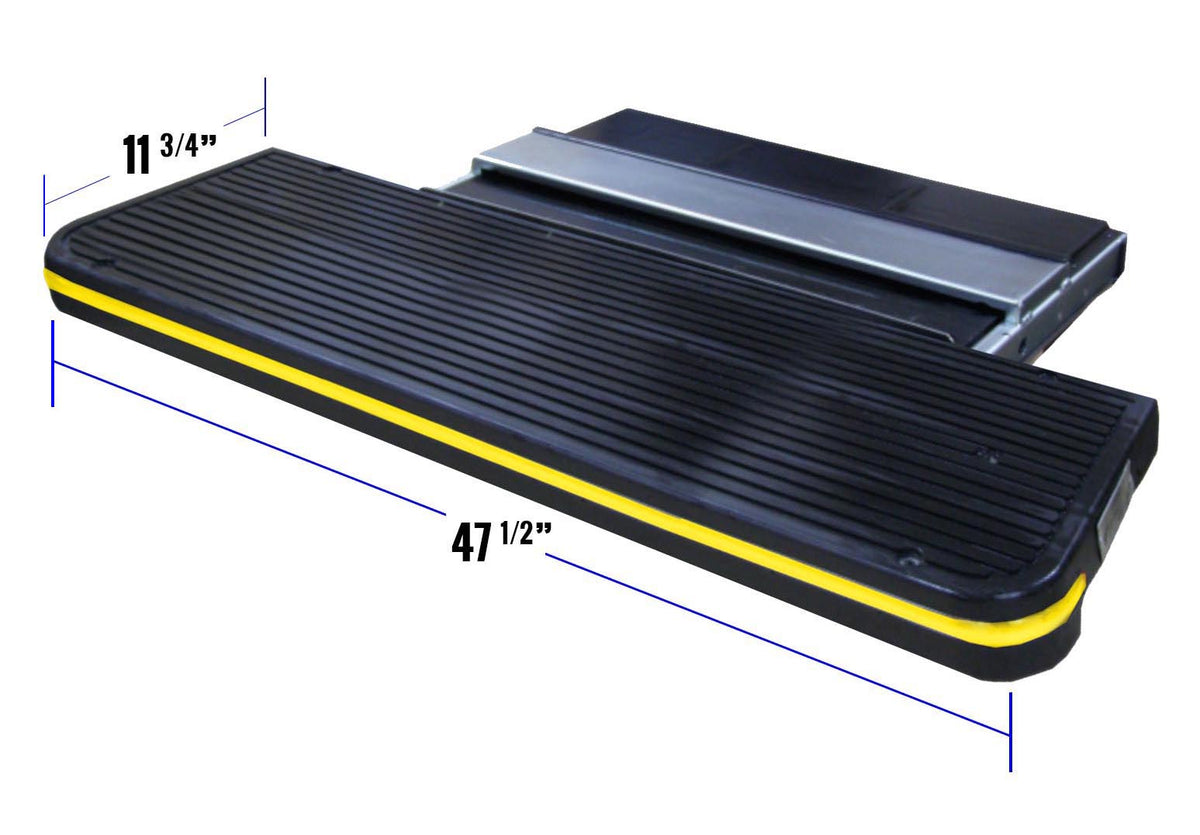

Fully enclosed, weatherproof telescopic step that deploys automatically as the door opens. Available in 47" and 26" polyurethane models.
Buying more than one? Call 888-928-8000 for quantity pricing. Our team can also confirm fitment for your exact van year and wheelbase.
Tech Specs
| System voltage | 12VDC |
|---|---|
| Nominal current | 3A |
| Operating temperature range | −30 °C to 80 °C |
| Duty cycle | 750,000 ±10,000 (open/close cycles) |
| Electrical motor | DC motor with gear assembly |
| Protection | IP68 (waterproof) |
| Direction of rotation | L/R |
| Control | Electronic Control Unit · Automatic Electronic control Unit |
| Circuit protection | Electronic circuit protection |
| Limit protection | Electronic limit protection |
|---|---|
| Overload protection | Included |

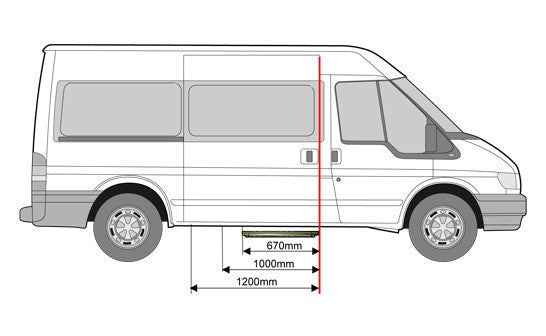

| Step width | 670; 1000; 1200 (mm) |
| Step depth | 300 mm |
| Anti slip | Polyurethane cover |
| Net weight (without brackets) | 20; 22; 24 (kg) |
| ES — Electrical Step | Telescopic 670mm |
