Description

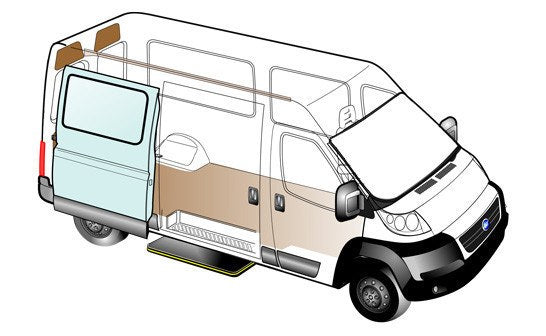

The Power Sliding Door kit opens and closes sliding door automatically. Motorized operation makes it quick and easy to safely open and close doors, even on extreme slopes. The kit includes everything necessary to install system on vehicle.
AutoCool Power Sliding Door Kit
Made for Dodge Ram ProMaster, Ford Transit, and Mercedes Sprinter.
Buying more than one? Call 888-928-8000 for quantity pricing. Our team can also confirm fitment for your exact van year and wheelbase.
Tech Specs
| System voltage | 12VDC |
|---|---|
| Nominal current | 5A |
| Operating temperature range | −30 °C to +80 °C |
| Road inclination | ±20° (36%) |
| Tested performance | 550,000 cycles |
| Drive | Rustproof chain |
| Control | Electronically controlled microprocessor |
| Remote control | Optional |
| Manual operation | Available |
| Opening | Programmable full or partial |
| Net weight | 7 kg |
| Highly sensitive pneumatic strip protection | |
| Two ways safety electronic protection | |
| Internal Emergency Handle included | |
| External Emergency Handle (for vehicles over 9 passengers) | |
| System operates only at speed under 5km/h |
Instructional Videos
Installation manuals
Step-by-step PDF instructions for every vehicle and part number.
Questions about this kit
What is included in the kit?
The kit includes everything necessary to install the system on the vehicle.
Will it work on a slope?
Yes. The system functions at road inclinations of ±20° (36%), so the door opens and closes safely even on extreme slopes.
Can the door open while driving?
No. The system operates only at speeds under 5 km/h.
Which variation do I need?
Pick the variation matching your van and model year above, or call 888-928-8000 and we will confirm it against your VIN.
