Description

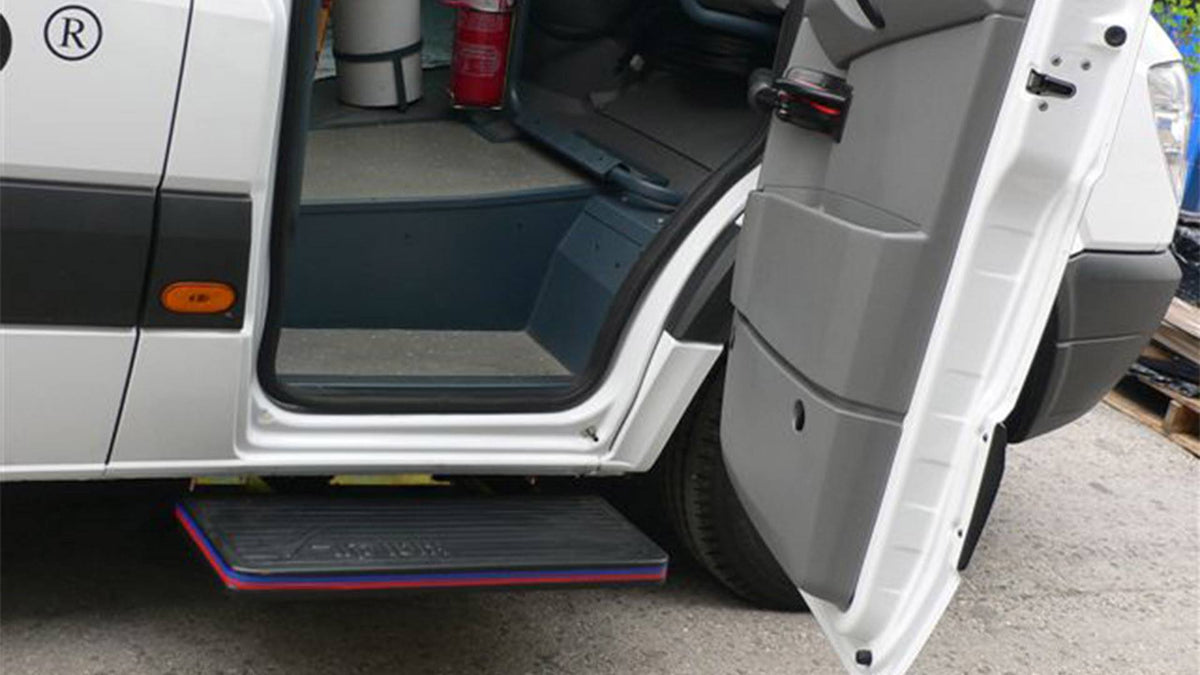

The Automatic Axial Door kit opens and closes passenger door automatically. Motorized operation makes it quick and easy to safely open and close doors. The kit includes everything necessary to install system on vehicle.
AutoCool Automatic Axial Door Kit
Automation for the front pivoting (axial) door. Available for the Ford Transit and Mercedes-Benz Sprinter.
Buying more than one? Call 888-928-8000 for quantity pricing. Our team can also confirm fitment for your exact van year and wheelbase.
Tech Specs
| System voltage | 12VDC |
|---|---|
| Nominal current | 5A |
| Operating temperature range | −30 °C to +80 °C |
| Functioning at road inclinations | ±20°C (36%) |
| Tested performance | 550,000 cycles (open/close = cycle) |
| Drive | Driven by rustproof chain |
| Control | Electronically controlled microprocessor |
| Remote control | Optional |
| Manual operation | Available |
| Opening | Door may be programmed for full or partial opening |
| Net weight | 7 kg |
| Highly sensitive pneumatic strip protection | |
| Two ways safety electronic protection | |
| Internal Emergency Handle included | |
| External Emergency Handle (for vehicles over 9 passengers) | |
| System operates only at speed under 5km/h |
Instructional Videos
Installation manuals
Step-by-step PDF instructions for every vehicle and part number.
Questions about this kit
What is included in the kit?
The kit includes everything necessary to install the system on the vehicle.
Will it work on a slope?
Yes. The system functions at road inclinations of ±20° (36%), so the door opens and closes safely even on extreme slopes.
Can the door open while driving?
No. The system operates only at speeds under 5 km/h.
Which model do I need?
Pick the model matching your van above, or call 888-928-8000 and we will confirm it against your VIN.
